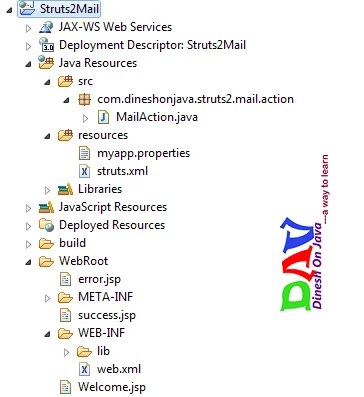

<p>In this chapter we will teach you how to send an email using your Struts 2 application. For this application, you need to download and install the<b> mail.jar</b> from <b><a href="http://www.oracle.com/technetwork/java/javasebusiness/downloads/java-archive-downloads-eeplat-419426.html#javamail-1.4.7-oth-JPR" target="_blank" rel="noopener">JavaMail API 1.4.7</a></b> and place the <b>mail.jar</b> file in your <i><b>WEB-INFlib </b></i>folder and then proceed to follow the standard steps of creating action, view and configuration files.</p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/07/1212212.png" border="0" /></div>
<h2><b>Create Action:</b></h2>
<p>The next step is to create an Action method that takes care of sending the email. Let us create a new class called <b>MailAction.java</b> with the following contents.</p>
</div>
<pre class="highlight">package com.dineshonjava.struts2.mail.action;

import java.util.Properties;
import javax.mail.Message;
import javax.mail.PasswordAuthentication;
import javax.mail.Session;
import javax.mail.Transport;
import javax.mail.internet.InternetAddress;
import javax.mail.internet.MimeMessage;

import com.opensymphony.xwork2.ActionSupport;

/**
 * @author Dinesh Rajput
 *
 */
public class MailAction extends ActionSupport {

 private static final long serialVersionUID = 1L;
 private String from;
 private String password;
 private String to;
 private String subject;
 private String body;

 static Properties properties = new Properties();
 static
 {
 properties.put("mail.smtp.host", "smtp.gmail.com");
 properties.put("mail.smtp.socketFactory.port", "465");
 properties.put("mail.smtp.socketFactory.class",
 "javax.net.ssl.SSLSocketFactory");
 properties.put("mail.smtp.auth", "true");
 properties.put("mail.smtp.port", "465");
 }

 public String execute()
 {
 String ret = SUCCESS;
 try
 {
 Session session = Session.getDefaultInstance(properties,
 new javax.mail.Authenticator() {
 protected PasswordAuthentication
 getPasswordAuthentication() {
 return new
 PasswordAuthentication(from, password);
 }});

 Message message = new MimeMessage(session);
 message.setFrom(new InternetAddress(from));
 message.setRecipients(Message.RecipientType.TO,
 InternetAddress.parse(to));
 message.setSubject(subject);
 message.setText(body);
 Transport.send(message);
 }
 catch(Exception e)
 {
 ret = ERROR;
 e.printStackTrace();
 }
 return ret;
 }

 public String getFrom() {
 return from;
 }

 public void setFrom(String from) {
 this.from = from;
 }

 public String getPassword() {
 return password;
 }

 public void setPassword(String password) {
 this.password = password;
 }

 public String getTo() {
 return to;
 }

 public void setTo(String to) {
 this.to = to;
 }

 public String getSubject() {
 return subject;
 }

 public void setSubject(String subject) {
 this.subject = subject;
 }

 public String getBody() {
 return body;
 }

 public void setBody(String body) {
 this.body = body;
 }

 public static Properties getProperties() {
 return properties;
 }

 public static void setProperties(Properties properties) {
 MailAction.properties = properties;
 }
}

</pre>
</div>
<div id="ads-id" align="center"></div>
<p>As seen in the source code above, the <b>MailAction.java</b> has properties that correspond to the form attributes in the <i><b>welcome.jsp </b></i>page given below. These attributes are</p>
<ul style="text-align: left;">
<li><b>from </b>&#8211; The email address of the sender. As we are using Google&#8217;s SMTP, we need a valid gtalk id</li>
<li><b>password </b>&#8211; The password of the above account</li>
<li><b>to </b>&#8211; Who to send the email to?</li>
<li><b>Subject </b>&#8211; subject of the email</li>
<li><b>body </b>&#8211; The actual email message</li>
</ul>
<p>We have not considered any validations on the above fields, validations will be added in the next chapter. Let us now look at the <b>execute()</b> method. The <b>execute() </b>method uses the javax Mail library to send an email using the supplied parameters. If the mail is sent successfully, action returns SUCCESS, otherwise it returns ERROR.</p>
</div>
<h2><b>Create view pages:</b></h2>
<p>Let us write main page JSP file<i><b> welcome.jsp</b></i>, which will be used to collect email related information mentioned above:<br />
<i><b>welcome.jsp</b></i></p>
<pre class="highlight"><;%@ page language="java" contentType="text/html; charset=ISO-8859-1"
 pageEncoding="ISO-8859-1"%>;
<;%@ taglib prefix="s" uri="/struts-tags"%>;
<;!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">;
<;html>;
<;head>;
<;title>;Email Form<;/title>;
<;/head>;
<;body>;
 <;em>;The form below uses Google's SMTP server.
 So you need to enter a gmail username and password
 <;/em>;
 <;form action="emailer" method="post">;
 <;label for="from">;From<;/label>;<;br/>;
 <;input type="text" name="from"/>;<;br/>;
 <;label for="password">;Password<;/label>;<;br/>;
 <;input type="password" name="password"/>;<;br/>;
 <;label for="to">;To<;/label>;<;br/>;
 <;input type="text" name="to"/>;<;br/>;
 <;label for="subject">;Subject<;/label>;<;br/>;
 <;input type="text" name="subject"/>;<;br/>;
 <;label for="body">;Body<;/label>;<;br/>;
 <;input type="text" name="body"/>;<;br/>;
 <;input type="submit" value="Send Email"/>;
 <;/form>;
<;/body>;
<;/html>;
</pre>
<p><i><b>success.jsp</b></i><br />
We will use JSP file <i><b>success.jsp</b></i> which will be invoked in case action returns SUCCESS, but we will have another view file in case of an ERROR is returned from the action.</p>
</div>
<pre class="highlight"><;%@ page language="java" contentType="text/html; charset=ISO-8859-1"
 pageEncoding="ISO-8859-1"%>;
<;%@ taglib prefix="s" uri="/struts-tags"%>;
<;!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">;
<;html>;
<;head>;
<;title>;Email Success<;/title>;
<;/head>;
<;body>;
 Your email to <;s:property value="to"/>; was sent successfully.
<;/body>;
<;/html>;
</pre>
</div>
<p><i><b>error.jsp</b></i><br />
Following will be the view file <i><b>error.jsp</b></i> in case of an ERROR is returned from the action.</p>
<pre class="highlight"><;%@ page language="java" contentType="text/html; charset=ISO-8859-1"
 pageEncoding="ISO-8859-1"%>;
<;%@ taglib prefix="s" uri="/struts-tags"%>;
<;!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN"
"http://www.w3.org/TR/html4/loose.dtd">;
<;html>;
<;head>;
<;title>;Email Error<;/title>;
<;/head>;
<;body>;
 There is a problem sending your email to <;s:property value="to"/>;.
<;/body>;
<;/html>;
</pre>
</div>
<h2><b>Configuration Files:</b></h2>
<p>Now let us put everything together using the <i><b>struts.xml </b></i>configuration file as follows:</p>
<pre class="highlight"><;?xml version="1.0" encoding="UTF-8" ?>;
<;!DOCTYPE struts PUBLIC
 "-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
 "http://struts.apache.org/dtds/struts-2.0.dtd">;

<;struts>;
 <;constant name="struts.enable.DynamicMethodInvocation" value="false" />;
 <;constant name="struts.devMode" value="false" />;
 <;constant name="struts.custom.i18n.resources" value="myapp" />;

 <;package name="default" extends="struts-default" namespace="/">;
 <;action name="emailer" class="com.dineshonjava.struts2.mail.action.MailAction" method="execute">;
 <;result name="success">;/success.jsp<;/result>;
 <;result name="error">;/error.jsp<;/result>;
 <;/action>;
 <;/package>;

<;/struts>;
</pre>
</div>
<p>Following is the content of <i><b>web.xml</b></i> file:</p>
<pre class="highlight"><;?xml version="1.0" encoding="UTF-8"?>;
<;web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xmlns:web="http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0">;
 <;display-name>;Struts2Mail<;/display-name>;
 <;filter>;
 <;filter-name>;struts2<;/filter-name>;
 <;filter-class>;
 org.apache.struts2.dispatcher.FilterDispatcher
 <;/filter-class>;
 <;/filter>;
 <;filter-mapping>;
 <;filter-name>;struts2<;/filter-name>;
 <;url-pattern>;/*<;/url-pattern>;
 <;/filter-mapping>;
 <;welcome-file-list>;
 <;welcome-file>;Welcome.jsp<;/welcome-file>;
 <;/welcome-file-list>;
<;/web-app>;
</pre>
</div>
<p>Now, right click on the project name and click <i><b>Export >; WAR</b></i> File to create a War file. Then deploy this WAR in the Tomcat&#8217;s webapps directory. Finally, start Tomcat server and try to access</p>
<p><b>URL<i> http://localhost:8080/doj/welcome.jsp</i></b><br />
This will give you following screen:</p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/07/32323.png" border="0" /></div>
</div>
<p>Enter the required information and click <b>Send Email </b>button. If everything goes fine then you should see the following page<br />
<i><b>http://localhost:8080/doj/emailer</b></i></p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com//wp-content/uploads/2013/07/34233.png" border="0" /></div>
<p><b>See the Inbox of <i>admin@dineshonjava.com</i> as following.</b></p>
<p> ;</p>
<div class="separator" style="clear: both; text-align: center;"><b><img src="https://dineshonjava.com//wp-content/uploads/2013/07/121212-1.png" border="0" /></b></div>
<p><b><br />
</b> <b>If any error come to sending the mail the following is coming.</b></p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/07/212111.png" border="0" /></div>
<p> ;</p>
</div>
<h2><b>Download Source Code+Libs</b><br />
<b><a href="https://sites.google.com/a/dineshonjava.com/dineshonjava/dineshonjava/Struts2Mail.zip?attredirects=0&;d=1" target="_blank" rel="noopener">Struts2Mail.zip</a></b></h2>
