Struts 2 Namespace Configuration Example

Struts 2 Namespace is a new concept to handle the multiple modules by given a namespace to each module. In addition, it can used to avoid conflicts between same action names located at different modules.

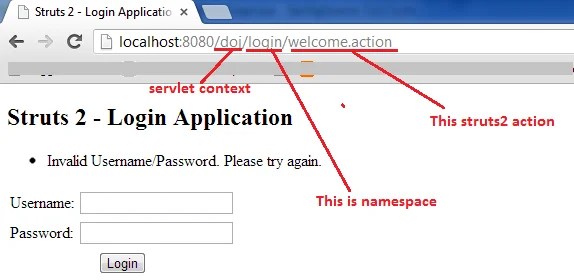

See this picture to understand how a URL match to Struts 2 action namespace.



Struts 2 Namespace Configuration Example

1. Namespace configuration-

Let go through a Struts 2 namescape configuration example to know how it match with URL and folder.
The package “login” will not affect the result, just give a meaningful name.
struts.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE struts PUBLIC
    "-//Apache Software Foundation//DTD Struts Configuration 2.0//EN"
    "http://struts.apache.org/dtds/struts-2.0.dtd">

<struts>
    <constant name="struts.enable.DynamicMethodInvocation" value="false" />
    <constant name="struts.devMode" value="false" />
    <constant name="struts.custom.i18n.resources" value="myapp" />

    <package name="default" extends="struts-default" namespace="/">
        <action name="welcome" class="com.dineshonjava.struts2.login.LoginAction">
            <result name="success">/Welcome.jsp</result>
            <result name="error">/Login.jsp</result>
        </action>
    </package>

    <package name="login" extends="struts-default" namespace="/login">
        <action name="welcome" class="com.dineshonjava.struts2.login.LoginAction">
            <result name="success">/Welcome.jsp</result>
            <result name="error">/Login.jsp</result>
        </action>
    </package>

    <package name="welocome" extends="struts-default" namespace="/welcome">
        <action name="welcome" class="com.dineshonjava.struts2.login.LoginAction">
            <result name="success">/Welcome.jsp</result>
            <result name="error">/Login.jsp</result>
        </action>
    </package>
</struts>

2. JSP View Pages

3 JSP view pages with same file name but locate at different modules.
1. View Root namespace

<%@ page contentType="text/html; charset=UTF-8"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Welcome</title>
</head>

<body>
    <h2>Default namespace</h2>
    <h2>Hello Welcome , <s:property value="username" />...! Dineshonjava.com</h2>

</body>
</html>

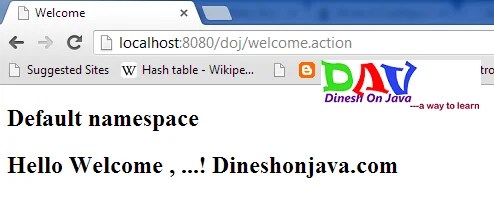

URL : http://localhost:8080/doj/welcome.action
Will match the root namespace.

<package name="default" extends="struts-default" namespace="/">
        <action name="welcome" class="com.dineshonjava.struts2.login.LoginAction">
            <result name="success">/Welcome.jsp</result>
            <result name="error">/Login.jsp</result>
        </action>
    </package>
Struts 2 Namespace

2. View login namespace

<%@ page contentType="text/html; charset=UTF-8"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Welcome</title>
</head>

<body>
    <h2>login namespace</h2>
    <h2>Hello Welcome , <s:property value="username" />...! Dineshonjava.com</h2>

</body>
</html>

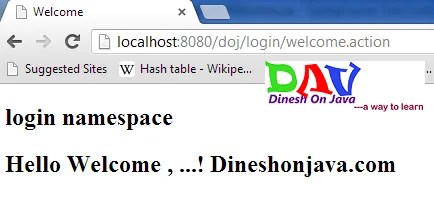

URL : http://localhost:8080/doj/login/welcome.action
Will match the login namespace.

<package name="login" extends="struts-default" namespace="/login">
        <action name="login" class="com.dineshonjava.struts2.login.LoginAction">
            <result name="success">/Welcome.jsp</result>
            <result name="error">/Login.jsp</result>
        </action>
    </package>



Struts Namespace

3. View welcome namespace-

<%@ page contentType="text/html; charset=UTF-8"%>
<%@ taglib prefix="s" uri="/struts-tags"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>Welcome</title>
</head>

<body>
    <h2>welcome namespace</h2>
    <h2>Hello Welcome , <s:property value="username" />...! Dineshonjava.com</h2>

</body>
</html>

URL : http://localhost:8080/doj/welcome/welcome.action
Will match the welcome namespace.

<package name="login" extends="struts-default" namespace="/welcome">
        <action name="welcome" class="com.dineshonjava.struts2.login.LoginAction">
            <result name="success">/Welcome.jsp</result>
            <result name="error">/Login.jsp</result>
        </action>
    </package>
Namespace



Reference

  1. Struts 2 Namespace Configuration Reference
