<p>In this tutorial, we will discuss about adding spring security logout functionality in Spring Security Application.<br />
Before go ahead , you must aware of Spring Security login.<b> <a href="https://dineshonjava.com/spring-security-form-based-login-example/" target="_blank" rel="noopener">Click here</a></b> if you are not well aware of it.</p>
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">
<div dir="ltr" style="text-align: justify;">There are some following changes you should made to implement for logout functionality :</div>
<p><b>1. Adding the following line of code to the <i>welcome.jsp</i> page for the logout link.</b></p>
<div id="ads-id" align="center"></div>
<pre class="highlight"><;%@ page language="java" contentType="text/html; charset=ISO-8859-1"
 pageEncoding="ISO-8859-1"%>;
<;!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">;
<;%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>;
<;html>;
<;head>;
<;meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">;
<;title>;WELCOME TO SECURE AREA<;/title>;
<;/head>;
<;body>;
 <;h1>;Message : ${message}<;/h1>;
 <;h1>;Author : ${author}<;/h1>;
 <;a href='<;c:url value="/j_spring_security_logout" />;' >; Logout<;/a>;
<;/body>;
<;/html>;
</pre>
</div>
<p> ;</p>
<div style="background-color: #f2f9fc; border: 1px solid #c9e6f2; border-radius: 3px; padding: 16px; line-height: 1.45;"><span style="color: red; font-size: x-large; text-align: center;"><b>Popular Tutorials</b></span></p>
<ul style="text-align: left;">
<li><b><a href="https://dineshonjava.com/spring-tutorial/"><em><strong>Spring Tutorial</strong> </em></a></b></li>
<li><b><a href="https://dineshonjava.com/spring-web-mvc-framework-chapter-38/"><strong><em>Spring MVC Web Tutorial </em></strong></a></b></li>
<li><b><a href="https://dineshonjava.com/introduction-to-spring-boot-a-spring-boot-complete-guide/"><strong>Spring Boot Tutorial</strong> </a></b></li>
<li><b><a href="https://dineshonjava.com/spring-security-take-baby-step-to-secure/"><em>Spring Security Tutorial</em></a></b></li>
<li><b><a href="https://dineshonjava.com/spring-aop-tutorial-with-example-aspect-advice-pointcut-joinpoint/"><em>Spring AOP Tutorial</em></a></b></li>
<li><b><a href="https://dineshonjava.com/using-spring-jdbc-framework-chapter-32/"><em>Spring JDBC Tutorial</em></a></b></li>
<li><b><a href="https://dineshonjava.com/spring-hateoas-hypermedia-driven-restful-web-service/"><em><strong>Spring HATEOAS </strong></em></a></b></li>
<li><b><a href="https://dineshonjava.com/microservices-with-spring-boot/"><em><strong>Microservices with Spring Boot</strong></em></a></b></li>
<li><b><a href="https://dineshonjava.com/jax-rs-web-service-tutorial/"><strong><em>REST Webservice</em> </strong></a></b></li>
<li><b><a href="https://dineshonjava.com/core-java-baby-step-to-be-best-java-ian/"><em><strong>Core Java </strong></em></a></b></li>
<li><b><a href="https://dineshonjava.com/hibernate-3-on-baby-steps/"><em><strong>Hibernate Tutorial</strong></em></a></b></li>
<li><b><a href="https://dineshonjava.com/spring-batch-process-with-example/"><strong><em>Spring Batch</em> </strong></a></b></li>
</ul>
</div>
<p><b>2. In the Spring Security configuration XML file, add the <;logout logout-success-url=&#8221;/logout&#8221; />; under the <;http>; tag as follows </b></p>
<p><b>sdnext-security.xml</b><br />
<b> </b></p>
<pre class="highlight"><;?xml version="1.0" encoding="UTF-8"?>;<br />
<;beans xmlns="http://www.springframework.org/schema/beans"<br />
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"<br />
 xmlns:>
</div>

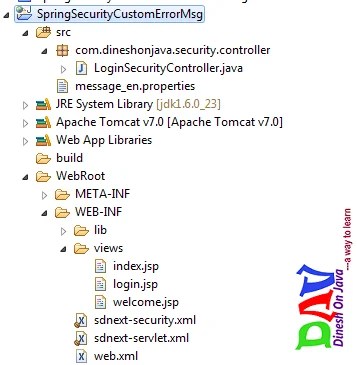

<p>All files are same as the previous example for login page as following derctory structure.</p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/02/custom1.png" border="0" /></div>
<p> ;</p>
</div>
<p><b>Running the example</b></p>
<p>Export the example as war and deploy it Tomcat 7 server. While browsing the project you will get the following screen for loging:</p>
<p>Access URL "<b>http://localhost:8080/sdnext/index</b>", Spring will redirect to your custom login form.<br />
<b><i>URL : http://localhost:8080/sdnext/login</i></b></p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/02/custom2.png" width="600" height="216" border="0" /></div>
</div>
<p><b>If username/password is correct, authentication success, display requested page.</b><br />
<b><br />
</b> <i><b>URL : http://localhost:8080/sdnext/index</b></i></p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/02/custom4-1.png" width="600" height="155" border="0" /></div>
<p><i><b> </b></i></p>
</div>
<p> ;</p>
</div>
<p><b>If username/password is correct, authentication success, display requested page.</b><br />
<b>on requested page click on <i>Logout </i>link.</b><br />
<b><br />
</b> <i><b>URL : http://localhost:8080/sdnext/logout</b></i></p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/02/custom5.png" width="600" height="210" border="0" /></div>
</div>
<p> ;</p>
</div>
<p><b>Download Source Code-</b><br />
<a href="https://sites.google.com/site/dinesh9582486434/my-forms/SpringSecurityCustomErrorMsg.zip?attredirects=0&;d=1" target="_blank" rel="noopener"><b>SpringSecurityLogoutExample.zip</b></a></p>
<p><b>References-</b><br />
<a href="https://dineshonjava.com/spring-security-form-based-login-example/" target="_blank" rel="noopener"><b>https://dineshonjava.com/spring-security-form-based-login-example/</b></a><br />
<a href="http://static.springsource.org/spring-security/site/" target="_blank" rel="noopener"><b>Spring Security</b></a><br />
<b><br />
</b></p>
