Spring Security Login Form Based Example

In the previous chapter we have been seen that Spring Security provide the by default login form for authentication. But In this tutorial, we show you an example for spring security login form, how to create a custom login form and ask Spring Security to use it for login authentication.

Spring Security Concepts

Spring Security works around two core areas of security, Authentication and Authorization.

1. “Authentication

It is the assurance that the user is actually the user he is claiming to be, for example, when the user logs into any application and gives his credentials, he authenticates himself. At the authentication level, spring supports various authentication models such as Http Basic authentication, Form Based authentication.

2. “Authorization

It is the assurance that the user is allowed to access only those resources that he is authorized to use. For example, in a corporate application, there are some parts of an application where only admin have access and to some parts all the employees have access. These access rules are determined by the access rights given to each user of the system. At the authorization level, spring targets three main areas: authorizing web request, authorizing whether methods can be invoked and authorizing access to individual domain object instances.



Required Tools used for this Application:

  • Spring MVC 3.0.1
  • Spring Security 3.1.0
  • STS 2.8.1.RELEASE
  • Tomcat 7
  • Jdk 1.7

Spring Security Login Form Based Example

To understand this application you have some prior knowledge about the Spring MVC web application.
Step 1: Please download the following more jars for Spring Security Lib from its official site.
To get started with the implementation, following jars need to be present in the class path of the project.

  • spring-security-acl-3.1.3.RELEASE.jar
  • spring-security-aspects-3.1.3.RELEASE.jar
  • spring-security-cas-3.1.3.RELEASE.jar
  • spring-security-config-3.1.3.RELEASE.jar
  • spring-security-core-3.1.3.RELEASE.jar
  • spring-security-crypto-3.1.3.RELEASE.jar
  • spring-security-ldap-3.1.3.RELEASE.jar
  • spring-security-openid-3.1.3.RELEASE.jar
  • spring-security-remoting-3.1.3.RELEASE.jar
  • spring-security-taglibs-3.1.3.RELEASE.jar
  • spring-security-web-3.1.3.RELEASE.jar

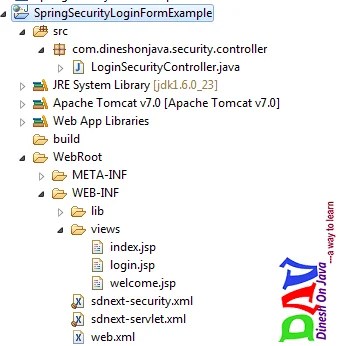

Step 2: Create the project “SpringSecurityLoginFormExample” with packages“com.dineshonjava.security.controller” and create the “LoginSecurityController.java” file in this package.

Step 3: Some more folders also create on the “WEB-INF” folder with name libs, views for jars and jsp files respectively. Two files “sdnext-servlet.xml” and “sdnext-security.xml” are created on the “WEB-INF” folder.

Spring Security Login Form Based Example

Namespace Configuration:

The namespace configuration of the spring provides lot of shortcuts that hides much of the complexity of the framework. To start with this configuration, define a security filter in web.xml as shown below:
Step 4: Configuring web.xml for Spring Security



<web-app version="2.5" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemalocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">

 <servlet>
  <servlet-name>sdnext</servlet-name>
  <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
        <load-on-startup>1</load-on-startup>
 </servlet>

 <servlet-mapping>
  <servlet-name>sdnext</servlet-name>
  <url-pattern>/</url-pattern>
 </servlet-mapping>
 <listener>
  <listener-class>
                  org.springframework.web.context.ContextLoaderListener
        </listener-class>
 </listener>

 <context-param>
  <param-name>contextConfigLocation</param-name><param-value>/WEB-INF/sdnext-*.xml,   </param-value></context-param>

 <welcome-file-list>
  <welcome-file>index</welcome-file>
 </welcome-file-list>

 <!-- Spring Security -->
 <filter>
  <filter-name>springSecurityFilterChain</filter-name>
  <filter-class>
                  org.springframework.web.filter.DelegatingFilterProxy
                </filter-class>
 </filter>

 <filter-mapping>
  <filter-name>springSecurityFilterChain</filter-name>
  <url-pattern>/*</url-pattern>
 </filter-mapping>

</web-app>

In the above configuration, DelegatingFilterProxy delegates the control to a filter implementation which is defined as a bean named springSecurityFilterChain. This bean is an infrastructure internal bean to handle namespace configurations. Once this configuration is done, all the incoming requests enter the spring framework for security checks.

Security Configuration:

The security configuration is done in XML file and can have any name such as sdnext-security.xml. This file needs to be loaded explicitly from web.xml. This is done by adding ContextLoadListener. The following lines needs to be added before security filter definition in web.xml.

Step 5: Spring Securing Configuration file (sdnext-security.xml)

<beans xmlns:p="http://www.springframework.org/schema/p" xmlns:security="http://www.springframework.org/schema/security" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://www.springframework.org/schema/beans" xsi:schemalocation="http://www.springframework.org/schema/beans
                           http://www.springframework.org/schema/beans/spring-beans.xsd
                           http://www.springframework.org/schema/security
                           http://www.springframework.org/schema/security/spring-security-3.1.xsd">

   <security:http auto-config="true">
 <security:intercept-url pattern="/index*" access="ROLE_USER" />
 <security:form-login login-page="/login" default-target-url="/index"
  authentication-failure-url="/fail2login" />
 <security:logout logout-success-url="/logout" />
</bean></beans>

<security:user name=”dineshonjava” password=”sweety” authorities=”ROLE_USER” /> This configuration is done to enable form-login authentication model where the login page is login.jsp. Note that in the intercept tag, pattern for /index* is given and access rule is defined as ROLE_USER. That means /index* is redirect to /login to checked for security, which makes sense as login.jsp is the starting point from where the user is authenticated.

The tag <security:authentication-manager> processes the authentication information; <security:authentication-provider> defines the credential information and the roles given to each user (authentication information).

Step 6: Spring Configuration File (sdnext-servlet.xml)

<beans xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://www.springframework.org/schema/beans" xsi:schemalocation="
http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx-3.0.xsd">

 <context:component-scan base-package="com.dineshonjava.security" />


  <property name="viewClass"
   value="org.springframework.web.servlet.view.JstlView" />
  <property name="prefix" value="/WEB-INF/views/" />
  <property name="suffix" value=".jsp" />
 </bean>
</beans>



Step 7: Creating LoginSecurityController class (LoginSecurityController.java)

package com.dineshonjava.security.controller;

import java.security.Principal;

import org.springframework.stereotype.Controller;
import org.springframework.ui.ModelMap;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

/**
 * @author Dinesh Rajput
 *
 */
@Controller
public class LoginSecurityController {

 @RequestMapping(value="/index", method = RequestMethod.GET)
 public String executeSecurity(ModelMap model, Principal principal ) {

  String name = principal.getName();
  model.addAttribute("author", name);
  model.addAttribute("message", "Welcome To Login Form Based Spring Security Example!!!");
  return "welcome";

 }

 @RequestMapping(value="/login", method = RequestMethod.GET)
 public String login(ModelMap model) {

  return "login";

 }

 @RequestMapping(value="/fail2login", method = RequestMethod.GET)
 public String loginerror(ModelMap model) {

  model.addAttribute("error", "true");
  return "login";

 }

 @RequestMapping(value="/logout", method = RequestMethod.GET)
 public String logout(ModelMap model) {

  return "login";

 }
}

JSP Views-

In custom login form, you have to follow Spring Security standard name :
1. j_spring_security_check – Login service
2. j_spring_security_logout – Logout service
3. j_username – Username
4. j_password – Password
Step 8: Creating welcome page (welcome.jsp)

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>

<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<html>
<head>

<title>WELCOME TO SECURE AREA</title>
</head>
<body>

Message : ${message}

Author : ${author}
<a href="https://www.blogger.com/%3Cc:url%20value=%22/j_spring_security_logout%22%20/%3E"> Logout</a>
</body>
</html>

login.jsp

<%@ page language="java" contentType="text/html; charset=ISO-8859-1"
    pageEncoding="ISO-8859-1"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN" "http://www.w3.org/TR/html4/loose.dtd">
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core"%>
<html>
<head>
<title>Login Page For Security</title>
<style>
.errorblock {
 color: #ff0000;
 background-color: #ffEEEE;
 border: 3px solid #ff0000;
 padding: 8px;
 margin: 16px;
}
</style>
</head>
<body onload='document.f.j_username.focus();'>
 <h3>Login with Username and Password (Custom Login Page)</h3>

 <c:if test="${not empty error}">
  <div class="errorblock">
   Your login attempt was not successful, try again.<br /> Caused :
   ${sessionScope["SPRING_SECURITY_LAST_EXCEPTION"].message}
  </div>
 </c:if>

 <form name='f' action="<c:url value='j_spring_security_check' />"
  method='POST'>

  <table>
   <tr>
    <td>User:</td>
    <td><input type='text' name='j_username' value=''>
    </td>
   </tr>
   <tr>
    <td>Password:</td>
    <td><input type='password' name='j_password' />
    </td>
   </tr>
   <tr>
    <td colspan='2'><input name="submit" type="submit"
     value="submit" />
    </td>
   </tr>
   <tr>
    <td colspan='2'><input name="reset" type="reset" />
    </td>
   </tr>
  </table>

 </form>
</body>
</html>

Step 9: Running the example

Export the example as war and deploy it Tomcat 7 server. While browsing the project you will get the following screen for loging:

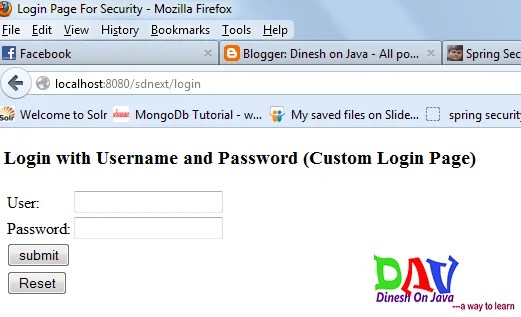

Access URL http://localhost:8080/sdnext/index“, Spring will redirect to your custom login form.
URL : http://localhost:8080/sdnext/login

Spring Security Login

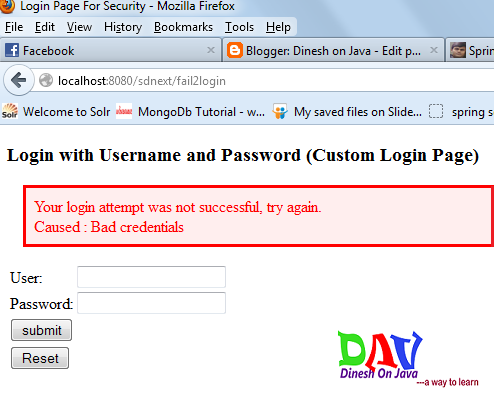

If username/password is wrong, authentication failed, display custom error messages.

URL : http://localhost:8080/sdnext/fail2login

Spring Security

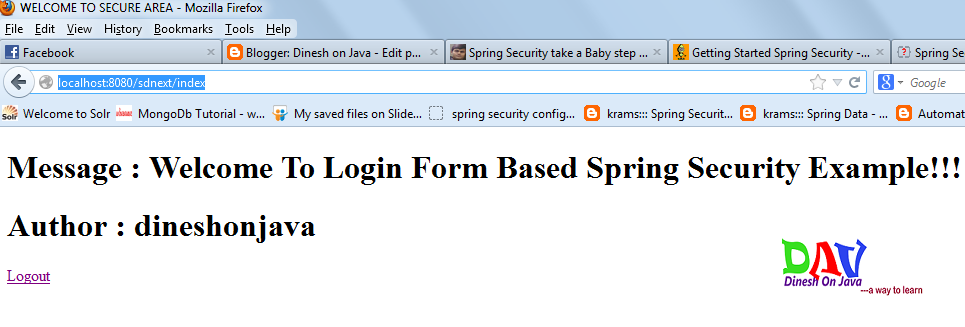

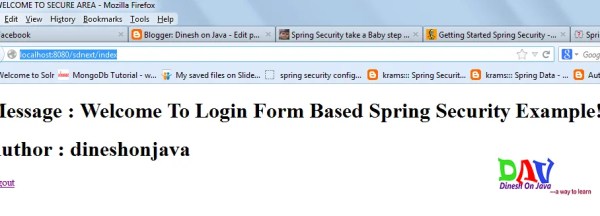

If username/password is correct, authentication success, display requested page.

URL : http://localhost:8080/sdnext/index

Spring Security Example

If username/password is correct, authentication success, display requested page.

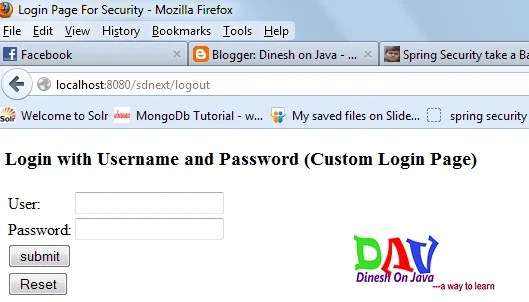

on requested page click on Logout link.

URL : http://localhost:8080/sdnext/logout

Spring Security Login Example



Download Source Code + Libs
SpringSecurityLoginFormExample.zip

References
http://www.codeproject.com/Articles/253901/Getting-Started-Spring-Security
Spring Security
Spring Security documentation
