In this Microservices Architecture Spring Boot tutorial, we will discuss to creating a microservices with spring and will see microservices architecture. Microservices allow large systems to be built up from a number of collaborating components. Microservices allows doing loose coupling between application processes instead of loose coupling between application components as Spring does.

Spring 5 Design Pattern Book

You could purchase my Spring 5 book that is with title name “Spring 5 Design Pattern“. This book is available on the Amazon and Packt publisher website. Learn various design patterns and best practices in Spring 5 and use them to solve common design problems. You could use author discount to purchase this book by using code- “AUTHDIS40“.


Microservices Architecture Spring Boot Table of Contents

  1. Introduction
    1. What is Microservices Architecture?
    2. Without Microservices
    3. With Microservices
  2. Microservices Benefits
  3. Microservices Challenges
  4. Microservices Infrastructure
  5. Microservices Tooling Supports
    1. Spring
      1. Spring Boot
    2. Spring Cloud
      1. Eureka by Netflix
  6. Developing Simple Microservices Example
    1. Creating Discovery Service
    2. Creating MicroService (the Producer)
    3. Create Microservice Consumers
  7. Summary

1. Introduction

Microservices is not a new term. It coined in 2005 by Dr Peter Rodgers then called micro web services based on SOAP. It became more popular since 2010. Microservices allows us to break our large system into the number of independent collaborating processes. Let us see below microservices architecture.

1.1 What is Microservices Architecture?

Microservices architecture allows avoiding monolith application for the large system. It provides loose coupling between collaborating processes which running independently in different environments with tight cohesion. So let’s discuss it by an example as below.

For example imagine an online shop with separate microservices for user-accounts, product-catalog order-processing and shopping carts. So these components are inevitably important for such a large online shopping portal. For online shopping system, we could use following architectures.

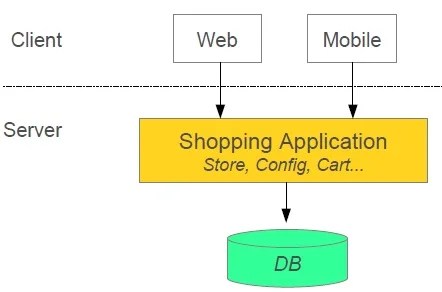

1.2 Shopping system without Microservices (Monolith architecture)

In this architecture we are using Monolith architecture i.e. all collaborating components combine all in one application.

1.3 Shopping system with Microservices

In this architecture style, the main application divided into a set of sub-applications called microservices. One large Application divided into multiple collaborating processes as below.

Spring enables separation-of-concerns

  • Loose Coupling– Effect of changes isolated
  • Tight Cohesion– Code perform a single well-defined task

Microservices provide the same strength as Spring provide

  • Loose Coupling– Application build from collaboration services or processes, so any process change without affecting another process.
  • Tight Cohesion-An individual service or process that deals with a single view of data.

There are a number of moving parts that you have to set up and configure to build such a system. For implementing this system is not too obvious you have to know about spring boot, spring cloud and Netflix. In this post, I will discuss one example for this architecture before the example lets first discuss pros and cons of microservices architecture.
Popular Tutorials

2. Microservices Benefits

  • The smaller code base is easy to maintain.
  • Easy to scale as an individual component.
  • Technology diversity i.e. we can mix libraries, databases, frameworks etc.
  • Fault isolation i.e. a process failure should not bring the whole system down.
  • Better support for smaller and parallel team.
  • Independent deployment
  • Deployment time reduce

3. Microservices Challenges

  • Difficult to achieve strong consistency across services
  • ACID transactions do not span multiple processes.
  • Distributed System so hard to debug and trace the issues
  • Greater need for an end to end testing
  • Required cultural changes in across teams like Dev and Ops working together even in the same team.

4. Microservices Infrastructure

  • Platform as a Service like Pivotal Cloud Foundry help to deployment, easily run, scale, monitor etc.
  • It supports for continuous deployment, rolling upgrades fo new versions of code, running multiple versions of the same service at same time.

5. Microservices Tooling Supports
5.1 Using Spring for creating Microservices

  • Setup new service by using Spring Boot
  • Expose resources via a RestController
  • Consume remote services using RestTemplate

5.2 Adding Spring Cloud and Discovery server
What is Spring Cloud?

  • It is building blocks for Cloud and Microservices
  • It provides microservices infrastructure like provide use services such as Service Discovery, a Configuration server and Monitoring.
  • It provides several other open source projects like Netflix OSS.
  • It provides PaaS like Cloud Foundry, AWS and Heroku.
  • It uses Spring Boot style starters

There are many use-cases supported by Spring Cloud like Cloud Integration, Dynamic Reconfiguration, Service Discovery, Security, Client-side Load Balancing etc. But in this post we concentrate on following microservices support

  • Service Discovery (How do services find each other?)
  • Client-side Load Balancing (How do we decide which service instance to use?)

Service Discovery
Problem without discovery

  • How do services find each other?
  • What happens if we run multiple instances for a service



Resolution with service discovery



Implementing Service Discovery

Spring Cloud support several ways to implement service discovery but for this, I am going to use Eureka created by Netflix. Spring Cloud provides several annotation to make it use easy and hiding lots of complexity.

Client-side Load Balancing

Each service typically deployed as multiple instances for fault tolerance and load sharing. But there is the problem how to decide which instance to use?

Implementing Client-Side Load Balancing

We will use Netflix Ribbon, it provides several algorithms for Client-Side Load Balancing. Spring provides smart RestTemplate for service discovery and load balancing by using @LoadBalanced annotation with RestTemplate instance.

@ImageSource-Spring.io


6. Developing Simple Microservices Example

To build a simple microservices system following steps required

  1. Creating Discovery Service (Creating Eureka Discovery Service)
  2. Creating MicroService (the Producer)
    1. Register itself with Discovery Service with logical service.
  3. Create Microservice Consumers find Service registered with Discovery Service
    1. Discovery client using a smart RestTemplate to find microservice.

Maven Dependencies

<dependencies>
  <dependency>
   <groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-starter</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-starter-eureka</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-web</artifactId>
  </dependency>

  <dependency>
   <groupId>org.hsqldb</groupId>
   <artifactId>hsqldb</artifactId>
   <scope>runtime</scope>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-test</artifactId>
   <scope>test</scope>
  </dependency>
 </dependencies>

Step 1: Creating Discovery Service (Creating Eureka Discovery Service)

  • Eureka Server using Spring Cloud
  • We need to implement our own registry service as below.

application.yml

# Configure this Discovery Server
eureka:
  instance:
    hostname: localhost
  client: #Not a client
    registerWithEureka: false
    fetchRegistry: false

# HTTP (Tomcat) port
server:
  port: 1111

DiscoveryMicroserviceServerApplication.java

package com.doj.discovery;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@SpringBootApplication
@EnableEurekaServer
public class DiscoveryMicroserviceServerApplication {

 public static void main(String[] args) {
  SpringApplication.run(DiscoveryMicroserviceServerApplication.class, args);
 }
}

pom.xml

<!-- Eureka registration server -->
  <dependency>
   <groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-starter-eureka-server</artifactId>
  </dependency>

For Whole Source Code for the Discover Server Application, you could download from GitHub as below link.

discovery-microservice-server

Run this Eureka Server application with right click and run as Spring Boot Application and open in browser http://localhost:1111/

Step 2: Creating Account Producer MicroService
Microservice declares itself as an available service and register to Discovery Server created in Step 1.

  • Using @EnableDiscoveryClient
  • Registers using its application name

Let’s see the service producer application structure as below.

application.yml

### Spring properties
# Service registers under this name
spring:
  application:
    name: accounts-microservice

# Discovery Server Access
eureka:
    client:
      serviceUrl:
        defaultZone: http://localhost:1111/eureka/

# HTTP Server (Tomcat) Port
server:
  port: 2222

# Disable Spring Boot's "Whitelabel" default error page, so we can use our own
error:
  whitelabel:
    enabled: false

AccountsMicroserviceServerApplication.java

package com.doj.ms.accounts;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
@EnableDiscoveryClient
public class AccountsMicroserviceServerApplication {

 public static void main(String[] args) {
  SpringApplication.run(AccountsMicroserviceServerApplication.class, args);
 }

}

pom.xml

<dependencies>
  <dependency>
   <groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-starter</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-starter-eureka</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-web</artifactId>
  </dependency>

 </dependencies>

Other required source files related to this application you could download from GitHub link as given below

accounts-microservice-server

Now run this account service application as Spring Boot application and after few seconds refresh the browser to the home page of Eureka Discovery Server at http://localhost:1111/ in previous Step 1. Now one Service registered to the Eureka registered instances with Service Name “ACCOUNT-MICROSERVICE” as below

Step 3: Consumer Service

  • Create Consumers to find the Producer Service registered with Discovery Service at Step 1.
  • @EnableDiscoveryClient annotation also allows us to query Discovery server to find microservices.

Let’s see the consumer application structure as below.

application.yml

# Service registers under this name
# Control the InternalResourceViewResolver:
spring:
  application:
    name: accounts-web
  mvc:
    view:
      prefix: /WEB-INF/views/
      suffix: .jsp

# Discovery Server Access
eureka:
  client:
    serviceUrl:
      defaultZone: http://localhost:1111/eureka/

# Disable Spring Boot's "Whitelabel" default error page, so we can use our own
error:
  whitelabel:
    enabled:  false


WebclientMicroserviceServerApplication.java

package com.doj.web;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;

@SpringBootApplication
@EnableDiscoveryClient
public class WebclientMicroserviceServerApplication {

 public static final String ACCOUNTS_SERVICE_URL = "http://ACCOUNTS-MICROSERVICE";

 public static void main(String[] args) {
  SpringApplication.run(WebclientMicroserviceServerApplication.class, args);
 }

 @Bean
 @LoadBalanced
 public RestTemplate restTemplate() {
  return new RestTemplate();
 }
 @Bean
 public AccountRepository accountRepository(){
  return new RemoteAccountRepository(ACCOUNTS_SERVICE_URL);
 }
}

pom.xml

<dependencies>
  <dependency>
   <groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-starter-eureka</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.cloud</groupId>
   <artifactId>spring-cloud-starter-ribbon</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-web</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-actuator</artifactId>
  </dependency>
  <dependency>
   <groupId>org.springframework.boot</groupId>
   <artifactId>spring-boot-starter-test</artifactId>
   <scope>test</scope>
  </dependency>
  <!-- These dependencies enable JSP usage -->
  <dependency>
   <groupId>org.apache.tomcat.embed</groupId>
   <artifactId>tomcat-embed-jasper</artifactId>
   <scope>provided</scope>
  </dependency>
  <dependency>
   <groupId>javax.servlet</groupId>
   <artifactId>jstl</artifactId>
  </dependency>
 </dependencies>

Other required source files related to this application you could download from GitHub link as given below

web client-microservice-server

Now run this consumer service application as Spring Boot application and after few seconds refresh the browser to the home page of Eureka Discovery Server at http://localhost:1111/ in previous Step 1. Now one more Service registered to the Eureka registered instances with Service Name “ACCOUNTS-WEB” as below

Lets our consumer consume the service of producer registered at discovery server.

package com.doj.web;

import java.util.Arrays;
import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.client.RestTemplate;

/**
 * @author Dinesh.Rajput
 *
 */
public class RemoteAccountRepository implements AccountRepository {

 @Autowired
 protected RestTemplate restTemplate;

 protected String serviceUrl;

 public RemoteAccountRepository(String serviceUrl) {
  this.serviceUrl = serviceUrl.startsWith("http") ? serviceUrl
    : "http://" + serviceUrl;
 }

 @Override
 public List<Account> getAllAccounts() {
  Account[] accounts = restTemplate.getForObject(serviceUrl+"/accounts", Account[].class);
  return Arrays.asList(accounts);
 }

 @Override
 public Account getAccount(String number) {
  return restTemplate.getForObject(serviceUrl + "/accounts/{id}",
    Account.class, number);
 }

}

Let’s open web application which is a consumer of the account microservice registered at Eureka Discovery Server.

http://localhost:8080/ as below

Now click on View Account List then fetch all accounts from account microservice.

http://localhost:8080/accountList

Now click on any account from the list of accounts to fetch the details of the account for account number from account microservice.

http://localhost:8080/accountDetails?number=5115

Load Balanced RestTemplate
Create using @LoadBalanced– Spring enhances it to service lookup & load balancing

@Bean
 @LoadBalanced
 public RestTemplate restTemplate() {
  return new RestTemplate();
 }

Must inject using the same qualifier-

  • If there are multiple RestTemplate you get the right one.
  • It can be used to access multiple microservices



@Autowired
        @LoadBalanced
 protected RestTemplate restTemplate;


Load Balancing with Ribbon
Our smart RestTemplate automatically integrates two Netflix utilities

  • Eureka Service Discovery
  • Ribbon Client Side Load Balancer

Eureka returns the URL of all available instances
Ribbon determine the best available service too use

Just inject the load balanced RestTemplate automatic lookup by logical service-name

7. Summary
After completion of this article you should have learned:

  • What is the MicroServices Architecture
  • Advantages and Challenges of MicroServices
  • And some information about Spring Cloud such as Eureka Discover Server by Netflix and Ribbon.
Previous
Next
Dinesh Rajput

Dinesh Rajput is the chief editor of a website Dineshonjava, a technical blog dedicated to the Spring and Java technologies. It has a series of articles related to Java technologies. Dinesh has been a Spring enthusiast since 2008 and is a Pivotal Certified Spring Professional, an author of a book Spring 5 Design Pattern, and a blogger. He has more than 10 years of experience with different aspects of Spring and Java design and development. His core expertise lies in the latest version of Spring Framework, Spring Boot, Spring Security, creating REST APIs, Microservice Architecture, Reactive Pattern, Spring AOP, Design Patterns, Struts, Hibernate, Web Services, Spring Batch, Cassandra, MongoDB, and Web Application Design and Architecture. He is currently working as a technology manager at a leading product and web development company. He worked as a developer and tech lead at the Bennett, Coleman & Co. Ltd and was the first developer in his previous company, Paytm. Dinesh is passionate about the latest Java technologies and loves to write technical blogs related to it. He is a very active member of the Java and Spring community on different forums. When it comes to the Spring Framework and Java, Dinesh tops the list!

Share
Published by
Dinesh Rajput

Recent Posts

Strategy Design Patterns using Lambda

Strategy Design Patterns We can easily create a strategy design pattern using lambda. To implement…

2 years ago

Decorator Pattern using Lambda

Decorator Pattern A decorator pattern allows a user to add new functionality to an existing…

2 years ago

Delegating pattern using lambda

Delegating pattern In software engineering, the delegation pattern is an object-oriented design pattern that allows…

2 years ago

Spring Vs Django- Know The Difference Between The Two

Technology has emerged a lot in the last decade, and now we have artificial intelligence;…

2 years ago

TOP 20 MongoDB INTERVIEW QUESTIONS 2022

Managing a database is becoming increasingly complex now due to the vast amount of data…

2 years ago

Scheduler @Scheduled Annotation Spring Boot

Overview In this article, we will explore Spring Scheduler how we could use it by…

3 years ago
