<div dir="ltr" style="text-align: justify;">In this tutorial we want to run a <i><b>JAX-WS</b></i> example (<b>Endpoint + Client</b>) for beginner of<b><i> JAX-WS</i></b> web service give the few minutes to this tutorial and happy learning ; ) .</div>
<div dir="ltr"></div>
<div dir="ltr" style="text-align: justify;"><b>Prerequisites:</b></p>
<ol>
<li>JDK 1.6</li>
<li>Eclipse (or STS) IDE</li>
</ol>
<h2><b>Developing <i>WebService </i>End Point</b></h2>

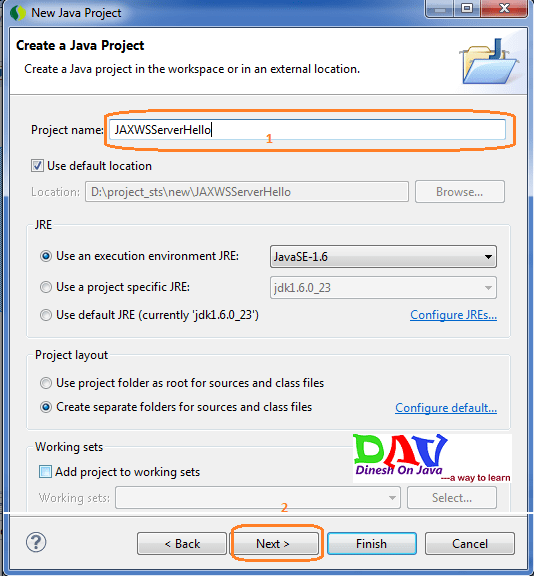

<p>1) Open Eclipse (or STS), and create a java project &#8220;<i><b>JAXWSServerHello</b></i>&#8220;.</p>
<div class="separator" style="clear: both; text-align: center;"></div>
<div id="ads-id" align="center"></div>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/06/step1ws.png" border="0" /></div>
<p><b>2) Create <i>WSServiceHello </i>Endpoint Interface:</b></p>
<div id="ads-id" align="center"></div>
<div class="separator" style="clear: both; text-align: center;"></div>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/06/step2ws.png" border="0" /></div>
<p><b><b><i>WSServiceHello .java</i></b></b></p>
<pre class="highlight">package com.dineshonjava.ws;

import javax.jws.WebMethod;
import javax.jws.WebService;

/**
 * @author Dinesh Rajput
 *
 */
@WebService
public interface WSServiceHello {

 @WebMethod String sayHello(String name);

}
</pre>
<p><b>3) Create <i>WSServiceHello </i>Endpoint Implementation class:</b><br />
<b><b><i>WSServiceHello .java</i></b></b></p>
<pre class="highlight">package com.dineshonjava.ws;

import javax.jws.WebService;

/**
 * @author Dinesh Rajput
 *
 */
@WebService(endpointInterface="com.dineshonjava.ws.WSServiceHello")
public class WSServiceHelloImpl implements WSServiceHello {

 @Override
 public String sayHello(String name) {
 return "Hello, Welcome to JAX-WS World and keep learning!! " + name;
 }

}
</pre>
<p><b>4) Create Endpoint Publisher class:</b><br />
<b><i>WSHelloPublisher.java</i> </b></p>
<pre class="highlight">package com.dineshonjava.publisher;

import javax.xml.ws.Endpoint;

import com.dineshonjava.ws.WSServiceHelloImpl;

/**
 * @author Dinesh Rajput
 *
 */
public class WSHelloPublisher {

 public static void main(String[] args) {
 Endpoint.publish("http://localhost:8181/WS/WSServiceHello"
 ,new WSServiceHelloImpl());
 }

}
</pre>
<p><b>5) Run above program.Your web service is published.You can check your service <i>wsdl </i>at<i> http://localhost:8181/WS/WSServiceHello?wsdl</i><br />
WSServiceHello.wsdl<br />
</b></p>
<pre class="highlight"><;?xml version="1.0" encoding="UTF-8"?>;
<;!-- Published by JAX-WS RI at http://jax-ws.dev.java.net. RI's version is JAX-WS RI 2.1.6 in JDK 6. -->;
<;!-- Generated by JAX-WS RI at http://jax-ws.dev.java.net. RI's version is JAX-WS RI 2.1.6 in JDK 6. -->;
<;definitions xmlns:soap="http://schemas.xmlsoap.org/wsdl/soap/" xmlns:tns="http://ws.dineshonjava.com/" xmlns:xsd="http://www.w3.org/2001/XMLSchema" xmlns="http://schemas.xmlsoap.org/wsdl/" targetNamespace="http://ws.dineshonjava.com/" name="WSServiceHelloImplService">;
<;types>;
<;xsd:schema>;
<;xsd:import namespace="http://ws.dineshonjava.com/" schemaLocation="http://localhost:8181/WS/WSServiceHello?xsd=1"/>;
<;/xsd:schema>;
<;/types>;
<;message name="sayHello">;
<;part name="parameters" element="tns:sayHello"/>;
<;/message>;
<;message name="sayHelloResponse">;
<;part name="parameters" element="tns:sayHelloResponse"/>;
<;/message>;
<;portType name="WSServiceHello">;
<;operation name="sayHello">;
<;input message="tns:sayHello"/>;
<;output message="tns:sayHelloResponse"/>;
<;/operation>;
<;/portType>;
<;binding name="WSServiceHelloImplPortBinding" type="tns:WSServiceHello">;
<;soap:binding transport="http://schemas.xmlsoap.org/soap/http" style="document"/>;
<;operation name="sayHello">;
<;soap:operation soapAction=""/>;
<;input>;
<;soap:body use="literal"/>;
<;/input>;
<;output>;
<;soap:body use="literal"/>;
<;/output>;
<;/operation>;
<;/binding>;
<;service name="WSServiceHelloImplService">;
<;port name="WSServiceHelloImplPort" binding="tns:WSServiceHelloImplPortBinding">;
<;soap:address location="http://localhost:8181/WS/WSServiceHello"/>;
<;/port>;
<;/service>;
<;/definitions>;
</pre>
<p><b>Developing <i>WebService </i>Client :</b><br />
1) <b>Open eclipse(or STS</b>) and create a new java project <b>&#8220;WSHelloClient&#8221;</b></p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/06/step3ws.png" border="0" /></div>
<p><b>2) As you know we need to generate the client stubs&#8230; but how? </b><br />
<b>open your command line, and enter the <i>wsimport </i>command:</b></p>
<pre class="highlight">CD %CLIENT_PROJECT_HOME%src
wsimport -keep http://localhost:8181/WS/WSServiceHello?wsdl
</pre>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/06/wscmd.png" border="0" /></div>
<p><b>you will find java classes generated and compiled under src->;com->;dineshonjava->;ws</b></p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/06/wsclasses.png" border="0" /></div>
<p><b><br />
</b> <b>3) Lets create client class now.</b><br />
<b>create <i>WSHelloClient.java </i>under <i>src->;com.dineshonjava.client</i></b></p>
<pre class="highlight">package com.dineshonjava.client;

import com.dineshonjava.ws.WSServiceHello;
import com.dineshonjava.ws.WSServiceHelloImplService;

/**
 * @author Dinesh Rajput
 *
 */
public class WSHelloClient {

 public static void main(String[] args) {
 WSServiceHelloImplService service = new WSServiceHelloImplService();
 WSServiceHello serviceHello = service.getWSServiceHelloImplPort();
 System.out.println("***************Call Started*******************");
 System.out.println(serviceHello.sayHello("Dinesh"));
 System.out.println("***************Call Ended*********************");
 }

}
</pre>
<p><b>4) Run above program and you will get following output.</b></p>
<div class="separator" style="clear: both; text-align: center;"><img src="https://dineshonjava.com/wp-content/uploads/2013/06/wsoutput.png" border="0" /></div>
<p><b>Congratulation, you have successfully created web service endpoint and client. Now in <a href="https://dineshonjava.com/2013/05/creating-simple-web-service-and-clients.html" target="_blank" rel="noopener">next post</a>, we will deploy it on Tomcat.</b></p>
<h3><b>Download Source Code </b><br />
<b><a href="https://sites.google.com/a/dineshonjava.com/dineshonjava/dineshonjava/Source%20Code.zip?attredirects=0&;d=1" target="_blank" rel="noopener">SourceCode.zip</a></b></h3>
<p><i><b>References</b></i><br />
<i><b><a href="http://en.wikipedia.org/wiki/Web_service" target="_blank" rel="noopener">Wikipedia for Web Service</a></b></i></p>
