SOAP

FileNotFoundException in Eclipse when creating a webservice

I am using SpringSource Tool Suite Version: 2.8.1.RELEASE

Some time whenever I am stuck up at creating a simple web service:

I created a test project called WebService (File > New > Dynamic Project)
Following one online tutorial to create a web service, I created a class as:

package com.dineshonjava.ws;

import javax.jws.WebMethod;
import javax.jws.WebService;
import javax.jws.soap.SOAPBinding;
import javax.jws.soap.SOAPBinding.Style;

/**
 * @author Dinesh Rajput
 * Service Endpoint Interface
 */

@WebService
@SOAPBinding(style = Style.RPC)
public interface HelloWorld {
 @WebMethod
 String sayHelloWorld(String name);
}

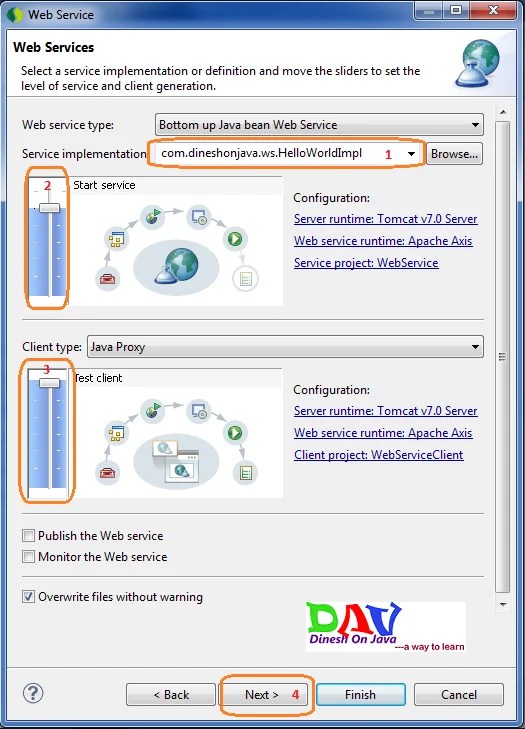

Next, I right Clicked WebServiceProject- > Web services > Create Web service
Type: Bottom up Java bean web service
Service implementation: com.dineshonjava.HelloWorldImpl

Upon clicking finish, i get the error:

IWAB0506E Error when copying Axis jar files to web project
        java.io.FileNotFoundException: /lib/saaj.jar
        at org.eclipse.osgi.framework.internal.protocol.bundleentry.Handler.findBundleEntry(Handler.java:44)
        at org.eclipse.osgi.framework.internal.core.BundleResourceHandler.openConnection(BundleResourceHandler.java:168)
        at java.net.URL.openConnection(Unknown Source)
        at java.net.URL.openStream(Unknown Source)
        at org.eclipse.jst.ws.internal.axis.consumption.ui.task.CopyAxisJarCommand.copyIFile(CopyAxisJarCommand.java:187)
        at org.eclipse.jst.ws.internal.axis.consumption.ui.task.CopyAxisJarCommand.copyAxisJarsToProject(CopyAxisJarCommand.java:156)
        at org.eclipse.jst.ws.internal.axis.consumption.ui.task.CopyAxisJarCommand.execute(CopyAxisJarCommand.java:109)
        at org.eclipse.jst.ws.internal.axis.creation.ui.command.BUCodeGenOperation$BottomUpWSModifyOperation.execute(BUCodeGenOperation.java:108)
        at org.eclipse.jst.ws.internal.axis.creation.ui.command.BUCodeGenOperation.execute(BUCodeGenOperation.java:80)
        at org.eclipse.wst.command.internal.env.core.fragment.CommandFragmentEngine.runCommand(CommandFragmentEngine.java:419)
        at org.eclipse.wst.command.internal.env.core.fragment.CommandFragmentEngine.visitTop(CommandFragmentEngine.java:359)
        at org.eclipse.wst.command.internal.env.core.fragment.CommandFragmentEngine.moveForwardToNextStop(CommandFragmentEngine.java:254)
        at org.eclipse.wst.command.internal.env.ui.widgets.SimpleCommandEngineManager$6.run(SimpleCommandEngineManager.java:294)
        at org.eclipse.jface.operation.ModalContext.runInCurrentThread(ModalContext.java:458)
        at org.eclipse.jface.operation.ModalContext.run(ModalContext.java:366)
        at org.eclipse.jface.wizard.WizardDialog.run(WizardDialog.java:934)
        at org.eclipse.wst.command.internal.env.ui.widgets.SimpleCommandEngineManager.runForwardToNextStop(SimpleCommandEngineManager.java:264)
        at org.eclipse.wst.command.internal.env.ui.widgets.WizardPageManager.runForwardToNextStop(WizardPageManager.java:91)
        at org.eclipse.wst.command.internal.env.ui.widgets.WizardPageManager.getNextPage(WizardPageManager.java:154)
        at org.eclipse.wst.command.internal.env.ui.widgets.SimpleWizardPage.getNextPage(SimpleWizardPage.java:136)
        at org.eclipse.jface.wizard.WizardDialog.nextPressed(WizardDialog.java:813)
        at org.eclipse.jface.wizard.WizardDialog.buttonPressed(WizardDialog.java:369)
        at org.eclipse.jface.dialogs.Dialog$2.widgetSelected(Dialog.java:624)
        at org.eclipse.swt.widgets.TypedListener.handleEvent(TypedListener.java:228)
        at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:84)
        at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1003)
        at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:3823)
        at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3422)
        at org.eclipse.jface.window.Window.runEventLoop(Window.java:825)
        at org.eclipse.jface.window.Window.open(Window.java:801)
        at org.eclipse.ui.internal.handlers.WizardHandler$New.executeHandler(WizardHandler.java:253)
        at org.eclipse.ui.internal.handlers.WizardHandler.execute(WizardHandler.java:273)
        at org.eclipse.ui.internal.handlers.HandlerProxy.execute(HandlerProxy.java:281)
        at org.eclipse.core.commands.Command.executeWithChecks(Command.java:476)
        at org.eclipse.core.commands.ParameterizedCommand.executeWithChecks(ParameterizedCommand.java:508)
        at org.eclipse.ui.internal.handlers.HandlerService.executeCommand(HandlerService.java:169)
        at org.eclipse.ui.internal.handlers.SlaveHandlerService.executeCommand(SlaveHandlerService.java:247)
        at org.eclipse.ui.internal.actions.CommandAction.runWithEvent(CommandAction.java:157)
        at org.eclipse.jface.action.ActionContributionItem.handleWidgetSelection(ActionContributionItem.java:583)
        at org.eclipse.jface.action.ActionContributionItem.access$2(ActionContributionItem.java:500)
        at org.eclipse.jface.action.ActionContributionItem$5.handleEvent(ActionContributionItem.java:411)
        at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:84)
        at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1003)
        at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:3823)
        at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3422)
        at org.eclipse.ui.internal.Workbench.runEventLoop(Workbench.java:2382)
        at org.eclipse.ui.internal.Workbench.runUI(Workbench.java:2346)
        at org.eclipse.ui.internal.Workbench.access$4(Workbench.java:2198)
        at org.eclipse.ui.internal.Workbench$5.run(Workbench.java:493)
        at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:288)
        at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:488)
        at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:149)
        at org.eclipse.ui.internal.ide.application.IDEApplication.start(IDEApplication.java:113)
        at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:193)
        at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:110)
        at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:79)
        at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:386)
        at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:179)
        at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
        at sun.reflect.NativeMethodAccessorImpl.invoke(Unknown Source)
        at sun.reflect.DelegatingMethodAccessorImpl.invoke(Unknown Source)
        at java.lang.reflect.Method.invoke(Unknown Source)
        at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:549)
        at org.eclipse.equinox.launcher.Main.basicRun(Main.java:504)
        at org.eclipse.equinox.launcher.Main.run(Main.java:1236)

IWAB0398E Error in generating WSDL from Java:  java.lang.ClassNotFoundException: com.dineshonjava.ws.HelloWorldImpl
    java.lang.ClassNotFoundException: com.dineshonjava.ws.HelloWorldImpl
    at org.eclipse.osgi.internal.loader.BundleLoader.findClassInternal(BundleLoader.java:513)
    at org.eclipse.osgi.internal.loader.BundleLoader.findClass(BundleLoader.java:429)
    at org.eclipse.osgi.internal.loader.BundleLoader.findClass(BundleLoader.java:417)
    at org.eclipse.osgi.internal.baseadaptor.DefaultClassLoader.loadClass(DefaultClassLoader.java:107)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:248)
    at org.apache.tools.ant.AntClassLoader.findBaseClass(AntClassLoader.java:1383)
    at org.apache.tools.ant.AntClassLoader.loadClass(AntClassLoader.java:1076)
    at java.lang.ClassLoader.loadClass(ClassLoader.java:248)
    at org.apache.axis.utils.ClassUtils$2.run(ClassUtils.java:187)
    at java.security.AccessController.doPrivileged(Native Method)
    at org.apache.axis.utils.ClassUtils.loadClass(ClassUtils.java:160)
    at org.apache.axis.utils.ClassUtils.forName(ClassUtils.java:100)
    at org.apache.axis.wsdl.fromJava.Emitter.setCls(Emitter.java:2079)
    at org.apache.axis.tools.ant.wsdl.Java2WsdlAntTask.execute(Java2WsdlAntTask.java:188)
    at org.eclipse.jst.ws.internal.axis.consumption.core.command.Java2WSDLCommand.executeAntTask(Java2WSDLCommand.java:180)
    at org.eclipse.jst.ws.internal.axis.consumption.core.command.Java2WSDLCommand.execute(Java2WSDLCommand.java:95)
    at org.eclipse.jst.ws.internal.axis.creation.ui.command.BUCodeGenOperation$BottomUpWSModifyOperation.execute(BUCodeGenOperation.java:122)
    at org.eclipse.jst.ws.internal.axis.creation.ui.command.BUCodeGenOperation.execute(BUCodeGenOperation.java:86)
    at org.eclipse.wst.command.internal.env.core.fragment.CommandFragmentEngine.runCommand(CommandFragmentEngine.java:419)
    at org.eclipse.wst.command.internal.env.core.fragment.CommandFragmentEngine.visitTop(CommandFragmentEngine.java:359)
    at org.eclipse.wst.command.internal.env.core.fragment.CommandFragmentEngine.moveForwardToNextStop(CommandFragmentEngine.java:254)
    at org.eclipse.wst.command.internal.env.ui.widgets.SimpleCommandEngineManager$6.run(SimpleCommandEngineManager.java:294)
    at org.eclipse.jface.operation.ModalContext.runInCurrentThread(ModalContext.java:464)
    at org.eclipse.jface.operation.ModalContext.run(ModalContext.java:372)
    at org.eclipse.jface.wizard.WizardDialog.run(WizardDialog.java:1029)
    at org.eclipse.wst.command.internal.env.ui.widgets.SimpleCommandEngineManager.runForwardToNextStop(SimpleCommandEngineManager.java:264)
    at org.eclipse.wst.command.internal.env.ui.widgets.WizardPageManager.runForwardToNextStop(WizardPageManager.java:91)
    at org.eclipse.wst.command.internal.env.ui.widgets.WizardPageManager.getNextPage(WizardPageManager.java:154)
    at org.eclipse.wst.command.internal.env.ui.widgets.SimpleWizardPage.getNextPage(SimpleWizardPage.java:136)
    at org.eclipse.jface.wizard.WizardDialog.nextPressed(WizardDialog.java:908)
    at org.eclipse.jface.wizard.WizardDialog.buttonPressed(WizardDialog.java:428)
    at org.eclipse.jface.dialogs.Dialog$2.widgetSelected(Dialog.java:624)
    at org.eclipse.swt.widgets.TypedListener.handleEvent(TypedListener.java:240)
    at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:84)
    at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1053)
    at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:4165)
    at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3754)
    at org.eclipse.jface.window.Window.runEventLoop(Window.java:825)
    at org.eclipse.jface.window.Window.open(Window.java:801)
    at org.eclipse.ui.internal.handlers.WizardHandler$New.executeHandler(WizardHandler.java:257)
    at org.eclipse.ui.internal.handlers.WizardHandler.execute(WizardHandler.java:277)
    at org.eclipse.ui.internal.handlers.HandlerProxy.execute(HandlerProxy.java:293)
    at org.eclipse.core.commands.Command.executeWithChecks(Command.java:476)
    at org.eclipse.core.commands.ParameterizedCommand.executeWithChecks(ParameterizedCommand.java:508)
    at org.eclipse.ui.internal.handlers.HandlerService.executeCommand(HandlerService.java:169)
    at org.eclipse.ui.internal.handlers.SlaveHandlerService.executeCommand(SlaveHandlerService.java:241)
    at org.eclipse.ui.internal.actions.CommandAction.runWithEvent(CommandAction.java:157)
    at org.eclipse.jface.action.ActionContributionItem.handleWidgetSelection(ActionContributionItem.java:584)
    at org.eclipse.jface.action.ActionContributionItem.access$2(ActionContributionItem.java:501)
    at org.eclipse.jface.action.ActionContributionItem$5.handleEvent(ActionContributionItem.java:411)
    at org.eclipse.swt.widgets.EventTable.sendEvent(EventTable.java:84)
    at org.eclipse.swt.widgets.Widget.sendEvent(Widget.java:1053)
    at org.eclipse.swt.widgets.Display.runDeferredEvents(Display.java:4165)
    at org.eclipse.swt.widgets.Display.readAndDispatch(Display.java:3754)
    at org.eclipse.ui.internal.Workbench.runEventLoop(Workbench.java:2696)
    at org.eclipse.ui.internal.Workbench.runUI(Workbench.java:2660)
    at org.eclipse.ui.internal.Workbench.access$4(Workbench.java:2494)
    at org.eclipse.ui.internal.Workbench$7.run(Workbench.java:674)
    at org.eclipse.core.databinding.observable.Realm.runWithDefault(Realm.java:332)
    at org.eclipse.ui.internal.Workbench.createAndRunWorkbench(Workbench.java:667)
    at org.eclipse.ui.PlatformUI.createAndRunWorkbench(PlatformUI.java:149)
    at org.eclipse.ui.internal.ide.application.IDEApplication.start(IDEApplication.java:123)
    at org.eclipse.equinox.internal.app.EclipseAppHandle.run(EclipseAppHandle.java:196)
    at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.runApplication(EclipseAppLauncher.java:110)
    at org.eclipse.core.runtime.internal.adaptor.EclipseAppLauncher.start(EclipseAppLauncher.java:79)
    at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:344)
    at org.eclipse.core.runtime.adaptor.EclipseStarter.run(EclipseStarter.java:179)
    at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
    at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)
    at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)
    at java.lang.reflect.Method.invoke(Method.java:597)
    at org.eclipse.equinox.launcher.Main.invokeFramework(Main.java:622)
    at org.eclipse.equinox.launcher.Main.basicRun(Main.java:577)
    at org.eclipse.equinox.launcher.Main.run(Main.java:1410)
    at org.eclipse.equinox.launcher.Main.main(Main.java:1386)

For resolving this issue you have to follow the following steps:
1. downloading the file saaj.jar and copying it to the location:

C:Program Files (x86)springsourcests-2.8.1.RELEASEpluginsorg.apache.axis_1.4.0.v201005080400lib

2. Eclipse points to the axis installation directory:

Window > Preferences > Web Services > Axis2 Preferences > Axis2 runtime location

3. Stop server and close all applications which uses java including eclipse(STS).
Open eclipse installation folder
Go to Plugins folder.
Search javax.xml.soap_1.3.0.*
Delete the javax.xml.soap_1.3.0.*****.jar file
Now open eclipse (STS) and try with your webservice.

References
Wikipedia for Web Service
