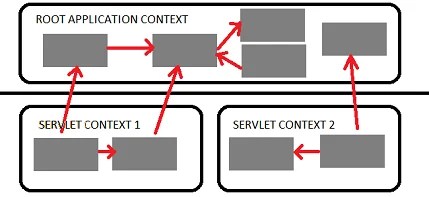

So we can say that both ApplicationContext and WebApplicationContext are the spring containers where WebApplicationContext is child of the ApplicationContext interface.
public interface WebApplicationContext extends ApplicationContext { ServletContext getServletContext(); }
WebApplicationContext has javax.servlet.ServletContext that means it’s able to communicate with the container.
ApplicationContext (i.e. Root Application Context)
In spring mvc for every web application applicationContext.xml file used as the root context configuration. Spring loads this file and creates the ApplicationContext for whole application. File applicationContext.xml is loaded by ContextLoaderLoaderLinstner which is configured into web.xml file as the context configuration. The default location and name of the Root Application Context are under WEB-INF folder and applicationContext.xml respectively and throw FileNotFoundException if it could not find this file in this location. Otherwise we have to declare explicitly the context configuration file name in web.xml using the contextConfigLocation param. There will be only one application context per web application.
WebApplicationContext
WebApplicationContext in Spring is web aware ApplicationContext i.e it has Servlet Context information. In single web application there can be multiple WebApplicationContext. That means each DispatcherServlet associated with single WebApplicationContext. The WebApplicationContext configuration file *-servlet.xml is specific to the DispatcherServlet and a web application can have more than one DispatcherServlet configured to handle the requests and each DispatcherServlet would have a separate *-servlet.xml file to configure. But, applicationContext.xml will be common for all the servlet configuration files. By default DispatcherServlet loads file name servletName-servlet.xml from your webapps WEB-INF folder. If you want to change the name of that file name or change the location, add init-param with contextConfigLocation as param name.
ContextLoaderListener
This listener is responsible to load the context configuration files. It performs the actual initialization work for the root application context. It reads a “contextConfigLocation” context-param and passes its value to the context instance. We can pass multiple files in the context configuration by commas or space separation. e.g. “WEB-INF/applicationContext.xml, WEB-INF/applicationContext-security.xml”.
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_3_0.xsd" id="WebApp_ID" version="3.0"> <!-- This is the root application context for whole web application. --> <context-param> <param-name>contextConfigLocation</param-name> <param-value>/WEB-INF/rootApplicationContext.xml</param-value> </context-param <listener> <listener-class> org.springframework.web.context.ContextLoaderListener </listener-class> </listener> <servlet> <servlet-name>webapp1</servlet-name> <servlet-class> org.springframework.web.servlet.DispatcherServlet </servlet-class> <!-- We require this configuration when we want to change the default name / location of the servlet specific configuration files --> <init-param> <param-name>contextConfigLocation</param-name> <param-value>/WEB-INF/app1-servlet.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet> <servlet-name>webapp2</servlet-name> <servlet-class> org.springframework.web.servlet.DispatcherServlet </servlet-class> <!-- We require this configuration when we want to change the default name / location of the servlet specific configuration files --> <init-param> <param-name>contextConfigLocation</param-name> <param-value>/WEB-INF/app2-servlet.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>webapp1</servlet-name> <url-pattern>/webapp1</url-pattern> </servlet-mapping> <servlet-mapping> <servlet-name>webapp2</servlet-name> <url-pattern>/webapp2</url-pattern> </servlet-mapping> </web-app>
