Design Patterns in Java with Example Tutorial

What is the design patterns?

In this design patterns tutorial, we will explain all type of design patterns in java with example. A design pattern is a common solution that is used to test generally repetitive problems in software development. The design does not exist as a complete program that can be transformed into an object or machine code but, as a template identify problems in the system and provide appropriate solutions. The design pattern testing is not present in normal procedural programming and is mostly adopted by developers in Object Oriented environment. These provide the interaction on Object-Oriented level involving classes and objects.It is used as an efficient programming approach where Object Oriented systems are being developed to provide robustly and error-free software generation.

Spring 5 Design Pattern Book

Need for Design Patterns

With the emerging needs of technology and the growth in the IT industry, typical software development practices, that required the completion of the entire software before testing, has also evolved. To avoid reverting to the stage of development after completion, a testing practice during development phase was introduced. It can be used to identify error conditions and problems in the code that may not be apparent at the time. The end modules that are obtained are already tested and are less error-prone.

Designing a template that can be reused on multiple codes saves time for test creation and is easy to understand by developers with prior experience working with it. The templates are code and problem independent and do not need to be specified by coders to deal with a problem

Types of Design Patterns

Design patterns are classified into four main categories and each individual design pattern in the category make up a total of 23 design patterns. The four main categories are:

1. Creational Pattern
2. Structural Pattern
3. Behavioral Pattern
4. J2EE Pattern

Creational Patterns

Creational Pattern is mostly concerned with the manner involved with creating class instances. It is further characterized as class-creation and object-creation Patterns. The object creation or instantiation is done implicitly using design patterns rather than directly. Thus, for a use-case, there is flexibility involved with the object creation.

• Abstract Factory
  In this pattern, a factory of related objects is created by an interface without specification of the class name. The factory passes the objects by following the Factory Pattern.
• Builder
  This pattern is used for a stage by stage creation of a complex object by combining simple objects. The final object creation depends on the stages of the creative process but is independent of other objects.
• Factory Method
  This pattern is employed mostly during development in Java. It provides implicit object instantiation through common interfaces.
• Object Pool
  Object pooling is used to reduce object creation cost when it is high for certain process and thus improves performance. It employs the method of object caching and simply retrieves objects from the cache pool instead of having to create it. The number of objects in the pool can be restricted to keep from continual growth.
• Prototype
  In Prototype patterns, object duplication is performed while performance is monitored. A prototype interface pattern is present to produce a copy of an object. It is used to restrict memory/database operations by keeping modification to a minimum using object copies.
• Singleton
  This pattern involves the present of one class and restricting object creation to a single object. The presence of a single object removes the need for object instantiation for accessing.

Structural Patterns

Structural Patterns deal with the composition of classes and objects. Inheritance is employed for interface composition and methods for addition of new functionalities are introduced by object composition. A better understanding of the entity relationship is established. Abilities of independent interfaces are combined in structural patterns.

• Adapter
  To link two interfaces that are not compatible and utilize their functionalities, Adapter pattern is used. It is used to provide a new interface covering for any existing class.
• Bridge
  In Bridge Pattern, there is a structural alteration in the main and interface implementer classes without having any effect on each other. These two classes are made independent of each other and are only connected by using the bridge which is an interface.
• Composite
  Composite Pattern is used group together objects as one object. The objects are composed in a tree structure form with the representation of individual tree nodes and the hierarchy as well. The objects belonging to the same groups are modified using this pattern.
• Decorator
  Decorator pattern restricts the alteration of object structure while a new functionality is added to it. The initial class remains unaltered while a decorator class wraps around it and provides extra capabilities.
• Façade
  Façade provides clients with access to the system but conceals the working of the system and its complexities. The pattern creates one class consisting of user functions and delegates provide calling facilities to the classes belonging to the systems.
• Flyweight
  Flyweight pattern is used to reduce memory usage and improve performance by cutting on object creation. The pattern looks for similar objects that already exist to reuse it rather than creating new ones that are similar.
• Private Class Data
  Some of the class attributes may be available without requirement and thus may be prone to be corrupted. To prevent that the attributes may be allowed to be manipulated only once during operation after which it becomes private and thus data is protected.
• Proxy
  It is used to create objects that may represent functions of other classes or objects and the interface is used to access these functionalities.

Behavioral patterns

Behavioral pattern deals with the communication between class objects. They are used to sense the presence of already present communication patterns and may be able to manipulate these patterns.

• Chain of responsibility
  A chain of objects is created to deal with the request so that no request goes back unfulfilled.
• Command
  Command pattern deals with requests by hiding it inside an object as a command and sent to be to invoker object which then passes it to an appropriate object that can fulfill the request.
• Interpreter
  Interpreter pattern is used for language or expression evaluation by creating an interface that tells the context for interpretation.
• Iterator
  Iterator pattern is used to provide sequential access to a number elements present inside a collection object without any relevant information exchange.
• Mediator
  Mediator pattern provides easy communication through its mediator class that allows communication for several classes.
• Memento
  Memento pattern involves the working of three classes Memento, CareTaker, and Originator. Memento holds the restorable state of the object. Originator’s job is the creation and storing of state and CareTaker’s job is the restoration of memento states.
• Null Object
  Null Object is used instead of specifying a Null value and is used to represent a particular operation that does nothing when created. It is basically a check for Null value without the presence of the value.
• Observer
  A One-to-Many relationship calls for the need of Observer pattern to check the relative dependencies of objects.
• State
  In State pattern, the behavior of a class varies with its state and is thus represented by the context object.
• Strategy
  Strategy pattern deals with the change in class behavior at runtime. The objects consist of strategies and the context object judges the behavior at runtime of each strategy.
• Template method
  It is used with components having similarity where a template of the code may be implemented to test both the components. The code can be changed with minor alterations.
• Visitor
  A Visitor performs a set of operations on an element class and changes its behavior of execution. Thus the variance in the behavior of element class is dependent on the change in visitor class.

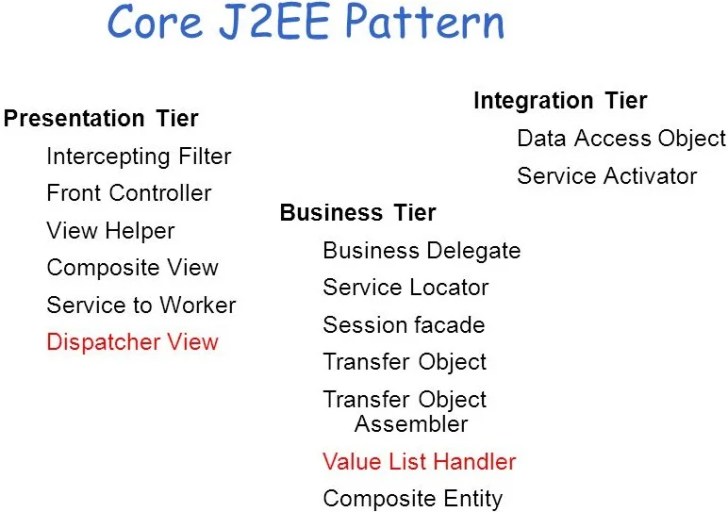

J2EE Patterns

J2EE stands for Java 2 Enterprise Edition currently known as Java Enterprise Edition (J EE). It consists of many APIs that provide software developers with the capabilities to write server-side code. The J2EE patterns deal with testing on the presentation tier as offered by Sun Java Center. These design patterns are specifically concerned with the following listed layers.

• Presentation Layer
• Business Layer
• Integration Layer

Presentation Tier

• Intercepting Filter
  It is used to provide interception and manipulation of requests as well as response prior to and preceding the processing of the request.
• Context Object
  Context Object is present to keep from using system information that is specific to the protocol and doesn’t coincide with its context.
• Front Controller
  A centralized access point allows for non-duplication of the control logic needed to handle a request. Front Controller is to handle such request by acting as an initial point.
• Application Controller
  It provides support for action reuse and code to view-management. The code is made more readable and maintainable as well as modular. Request handling is also improved and made more extensible.
• View Helper
  It is used to provide a different view, hiding the logic present in the code. Now the logic and the view are completely independent to provide ease for developers and designers.
• Composite View
  Small sub views can be created using the composite view. These sub views can be integrated to create a singular view.
• Dispatcher View
  To be able to support a small amount of multitasking, dispatcher view is used. It provides handling and response generation for requests while a business processing is taking place.
• Service to Worker
  It is used to perform handling of requests as well as processing of the business transaction and after that, the control is transferred to the View.

Business Tier

• Business Delegate
  The business delegate pattern is one of the Java EE design patterns. It is used in order to decouple or reduce the coupling between the presentation tier and business services.
• Service Locator
  The design pattern, service locator is an important part in software development. Looking up for a service is one of the core features of service locator. A robust abstraction layer performs this function. The design pattern uses a central registry called Service Locator.
• Session Facade
  The session façade pattern’s core application is development of enterprise apps. You can also call it a logical extension of GoF designs. The pattern encases the interactions which are happening between the low-level components, which is Entity EJB.
• Business Object
  Object-oriented programming makes use of the business object. It represents the parts of a business. A business object is able to represent things like event, person, business process, place, and concept. The business object can exist in certain forms like a product, an invoice, and the details of a particular part of a transaction.
• Composite Entity
  It is one if the Java EE software-design patterns. The composite entity pattern performs modeling, managing and representing a set of interrelated persistent objects. It does not represent them as separate fine-grained entity beans. Composite entity beans are able to represent a graph of objects.
• Transfer Object
  It is one of the Java EE design patterns. We need transfer object when we need to pass the data across various attributes in a packet to the server. Value Object is another name for transfer object. The transfer object is just a class of POJO which has a method of the getter and setter.

Integration Tier

• Data Access Object
  The data access object in a computer software which is as an object which is responsible for providing abstract interface for communication to a specific form of database.
• Service Activator
  The service activator design pattern is one of the Java EE patterns. It is an SI (spring integration) component. It is responsible for triggering or activating a service object or bean which is managed by the spring. A service activator searches through the message channel in order to look for messages.
• Web Service Broker
  The web service broker uses web protocols and XML. We can use this pattern to expose and broker the services. Assume a circumstance, where multiple organizations are lined up in order to request info from a number of service providers.
