Spring BeanFactory Implementation

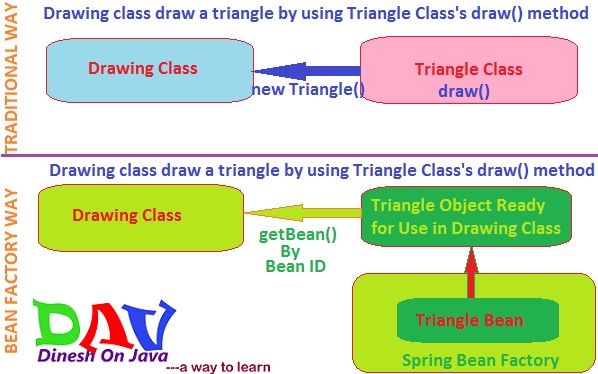

A Spring BeanFactory is like a factory class that contains a collection of beans. The Spring BeanFactory holds Bean Definitions of multiple beans within itself and then instantiates the bean whenever asked for by clients.

Spring BeanFactory is able to create associations between collaborating objects as they are instantiated. This removes the burden of configuration from bean itself and the beans client.

Spring BeanFactory also takes part in the life cycle of a bean, making calls to custom initialization and destruction methods.

Popular Tutorials

This is the simplest container providing basic support for DI and defined by the org.springframework.beans.factory.BeanFactory interface. The BeanFactory and related interfaces, such as BeanFactoryAware, InitializingBean, DisposableBean, are still present in Spring for the purposes of backward compatibility with the large number of third-party frameworks that integrate with Spring.

Triangle.java

package com.sdnext.dineshonjava.beanfactory.tutorial;

public class Triangle
{
 public void draw()
 {
     System.out.println("Drawing Triangle");
 }
}

spring.xml

<beans xmlns:aop="http://www.springframework.org/schema/aop" xmlns:p="http://www.springframework.org/schema/p" xmlns:security="http://www.springframework.org/schema/security" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://www.springframework.org/schema/beans" xsi:schemalocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
        http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-2.5.xsd
     http://www.springframework.org/schema/security http://www.springframework.org/schema/security/spring-security-2.0.4.xsd
        http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-2.5.xsd
  http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-2.5.xsd">

   <bean class="com.sdnext.dineshonjava.beanfactory.tutorial.Triangle" id="triangle">

  </bean>
</beans>

Drawing.java

package com.sdnext.dineshonjava.beanfactory.tutorial;

import org.springframework.beans.factory.BeanFactory;
import org.springframework.beans.factory.xml.XmlBeanFactory;
import org.springframework.core.io.FileSystemResource;

/**
 * @author Dinesh Rajput
 *
 */
public class DrawingApp
{
 /**
  * @param args
  */
 public static void main(String[] args)
 {
  //Triangle triangle = new Triangle();
      BeanFactory factory = new XmlBeanFactory(new FileSystemResource("spring.xml"));
  Triangle triangle = (Triangle) factory.getBean("triangle");
  triangle.draw();
 }
}

There are following two important points to note about the main program:

First step is to create factory object where we used framework API XmlBeanFactory() to create the factory bean and ClassPathResource() API to load the bean configuration file available in CLASSPATH. The XmlBeanFactory() API takes care of creating and initializing all the objects ie. beans mentioned in the configuration file.
Second step is used to get required bean using getBean() method of the created bean factory object. This method uses bean ID to return a generic object which finally can be casted to actual object. Once you have object, you can use this object to call any class method.

After run the Drawing class we will get following Output on console.

Output:

Jun 17, 2012 3:47:36 PM org.springframework.beans.factory.xml.XmlBeanDefinitionReader loadBeanDefinitions

INFO: Loading XML bean definitions from file [F:my workspacespring03BeanFactoryDemospring.xml]

Drawing Triangle

Spring Related Topics you may like

In Next Chapter we will discuss same example using Application Context Container.
